UCP Series Pillow Block Bearings Complete - UCP205

AMA IrelandSKU: 07451

If you are an existing customer please login

Login

Description

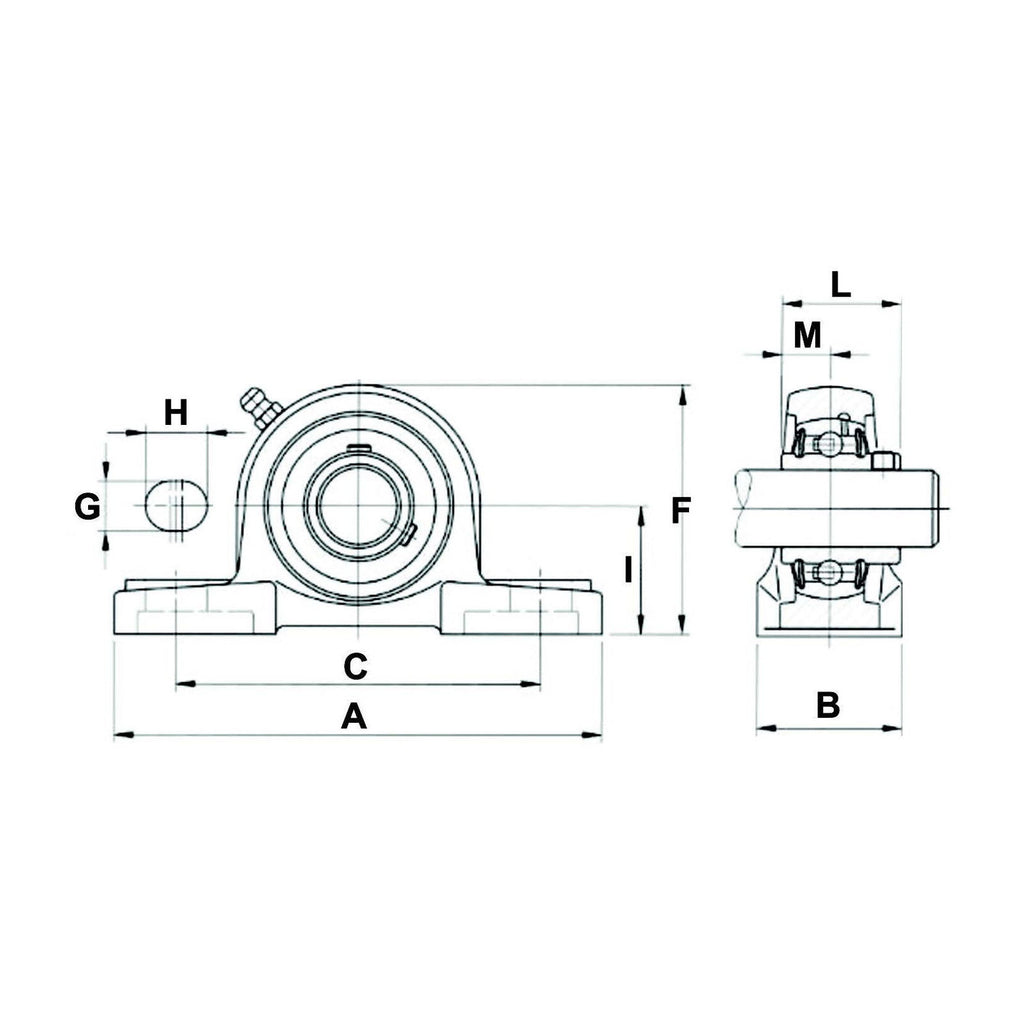

Bearing Code: UPC205

Shaft (mm): 25

A (mm): 140

B (mm): 38

C (mm): 105

F (mm): 70

G (mm): 13

H (mm): 16

L (mm): 34

M (mm): 14.3

Replacement Insert: Art.34630 UC205

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
