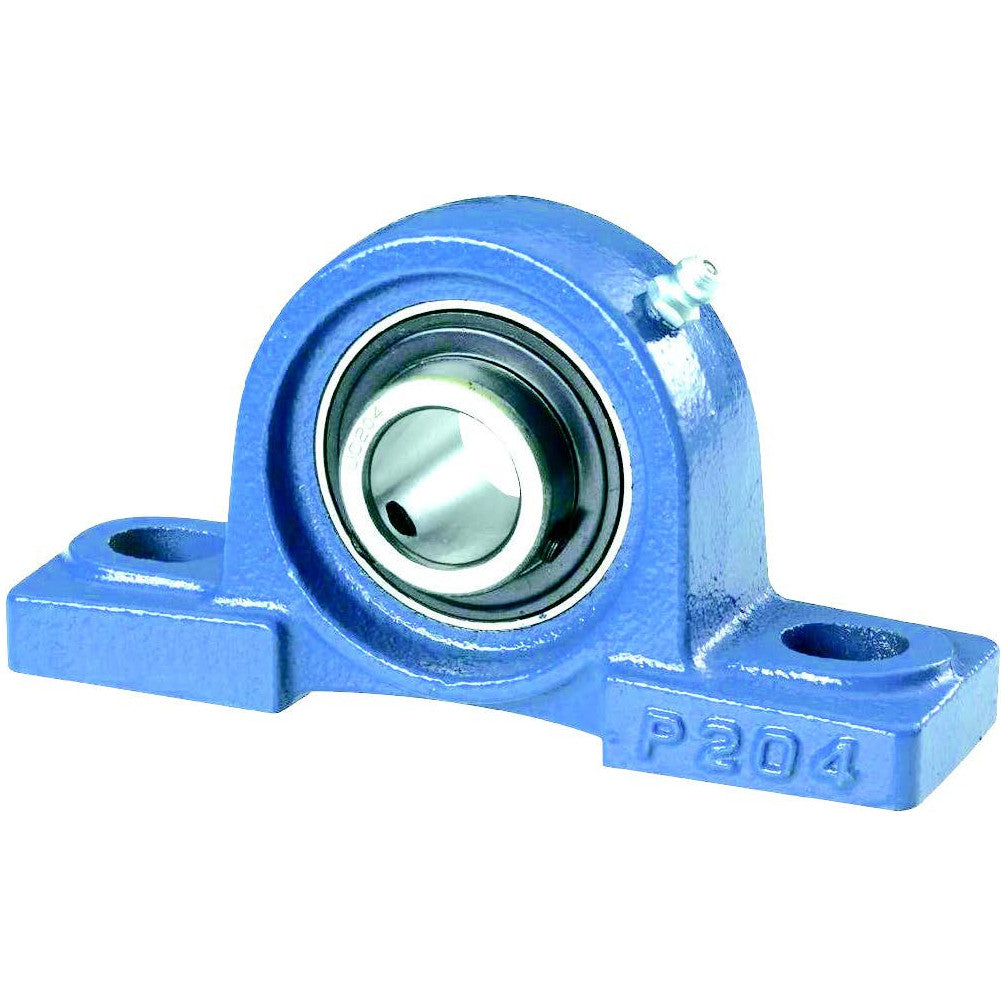

UCP Series Pillow Block Bearings Complete - UCP204

AMA IrelandSKU: 07450

If you are an existing customer please login

Login

Description

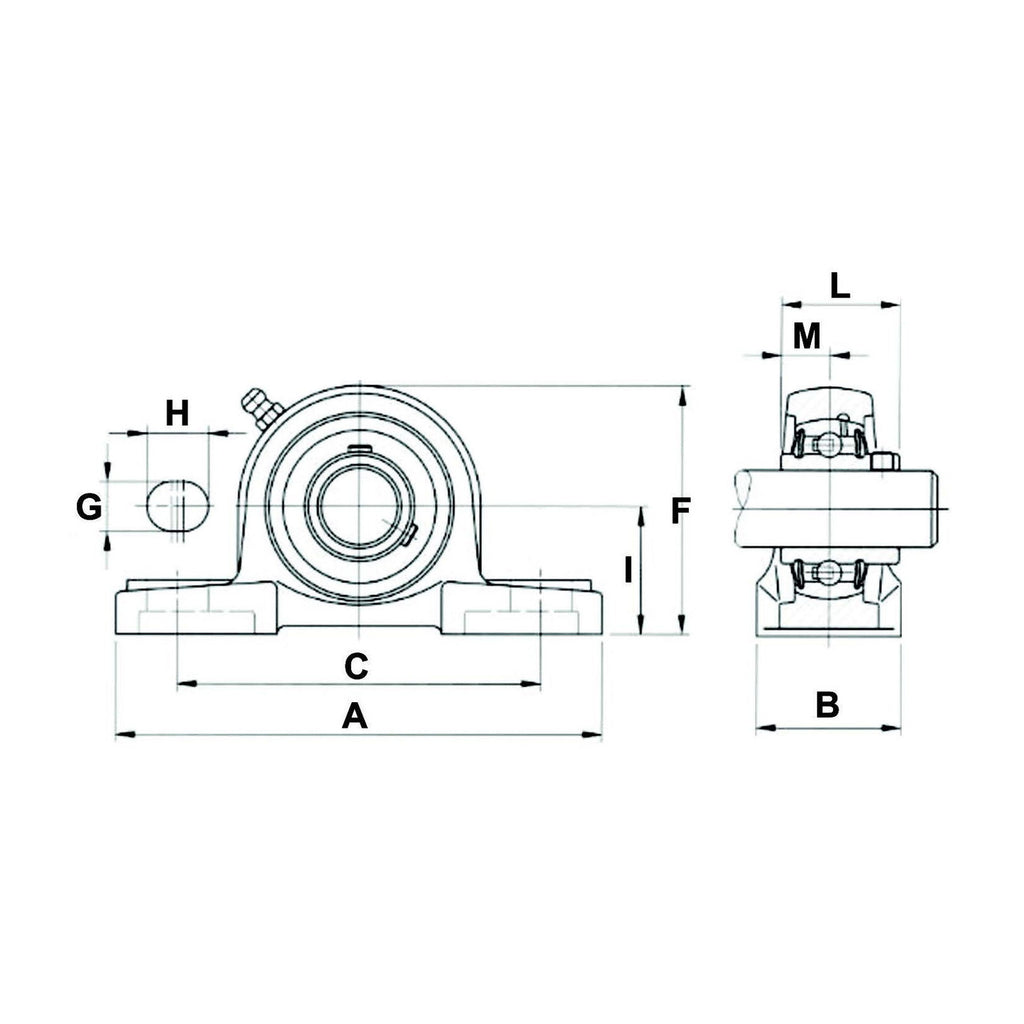

Bearing Code:UPC204

Shaft (mm): 20

A (mm): 127

B (mm): 38

C (mm): 95

F (mm): 65

G (mm): 13

H (mm): 16

L (mm): 31

M (mm): 12.7

Replacement Insert: Art.34629 UC204

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
