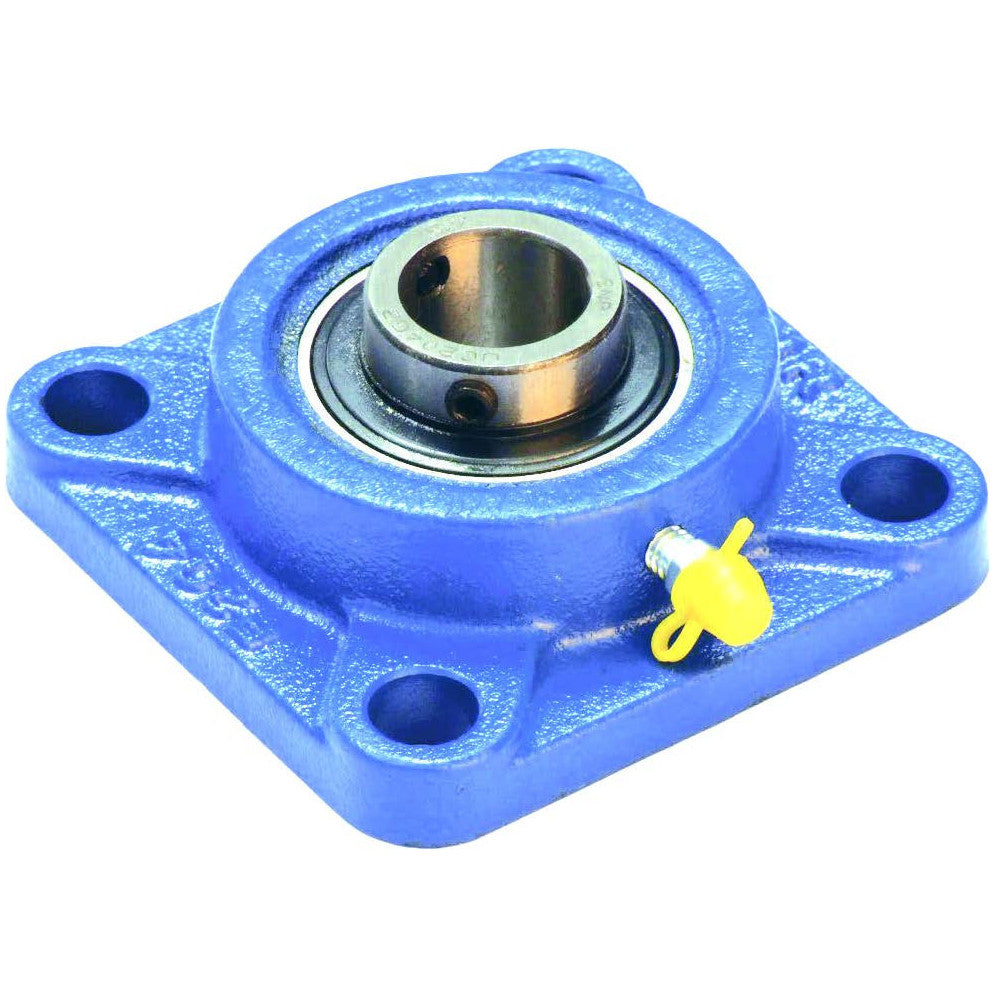

UCF Series Square 4 Bolt Flange Bearing Complete - UCF211

AMA IrelandSKU: 07466

If you are an existing customer please login

Login

Description

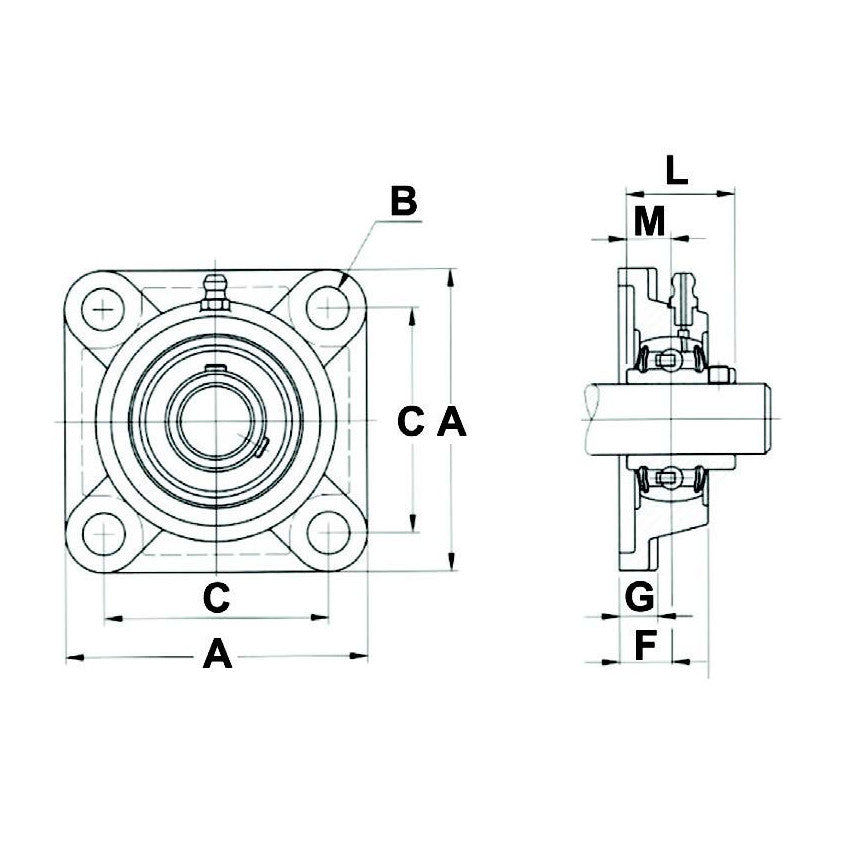

Bearing Code: UCF211

Shaft (mm): 55

A (mm): 162

B (mm): 19

C (mm): 130

F (mm): 25

G (mm): 18

L (mm): 55.6

M (mm): 22.2

Replacement Insert: Art.34636 UC211

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
