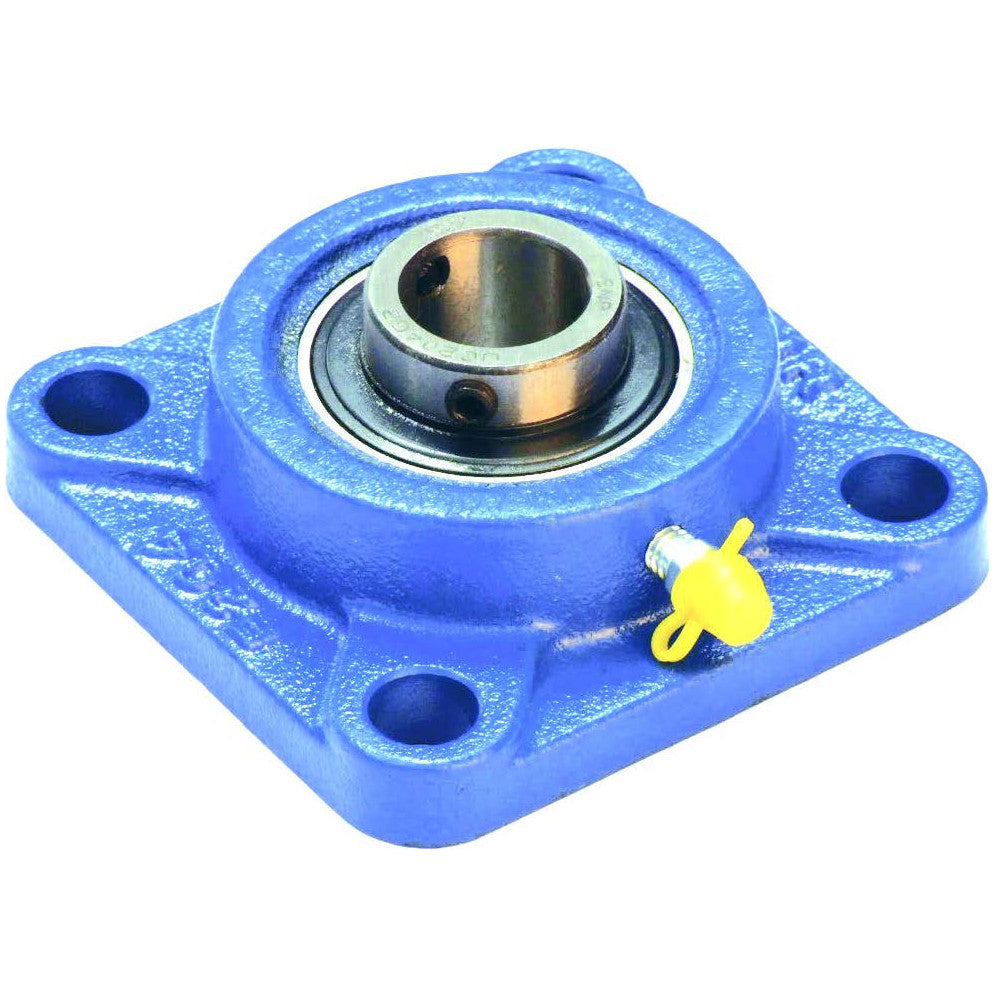

UCF Series Square 4 Bolt Flange Bearing Complete - UCF210

AMA IrelandSKU: 07465

If you are an existing customer please login

Login

Description

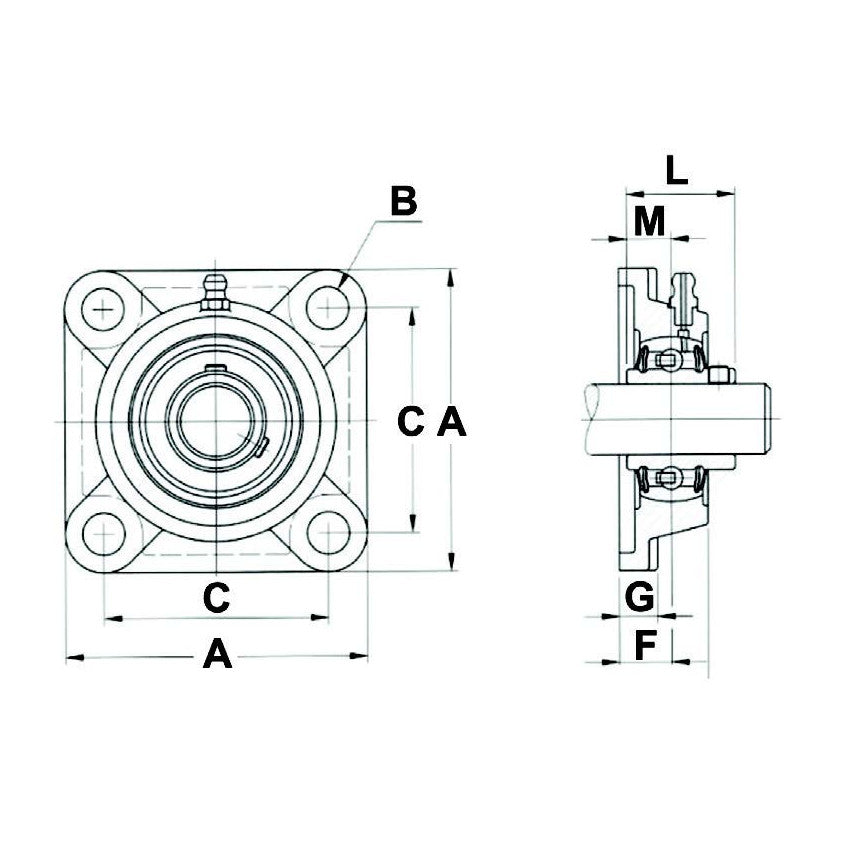

Bearing Code: UCF210

Shaft (mm): 50

A (mm): 143

B (mm): 16

C (mm): 111

F (mm): 22

G (mm): 16

L (mm): 51.6

M (mm): 19

Replacement Insert: Art.34635 UC210

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
