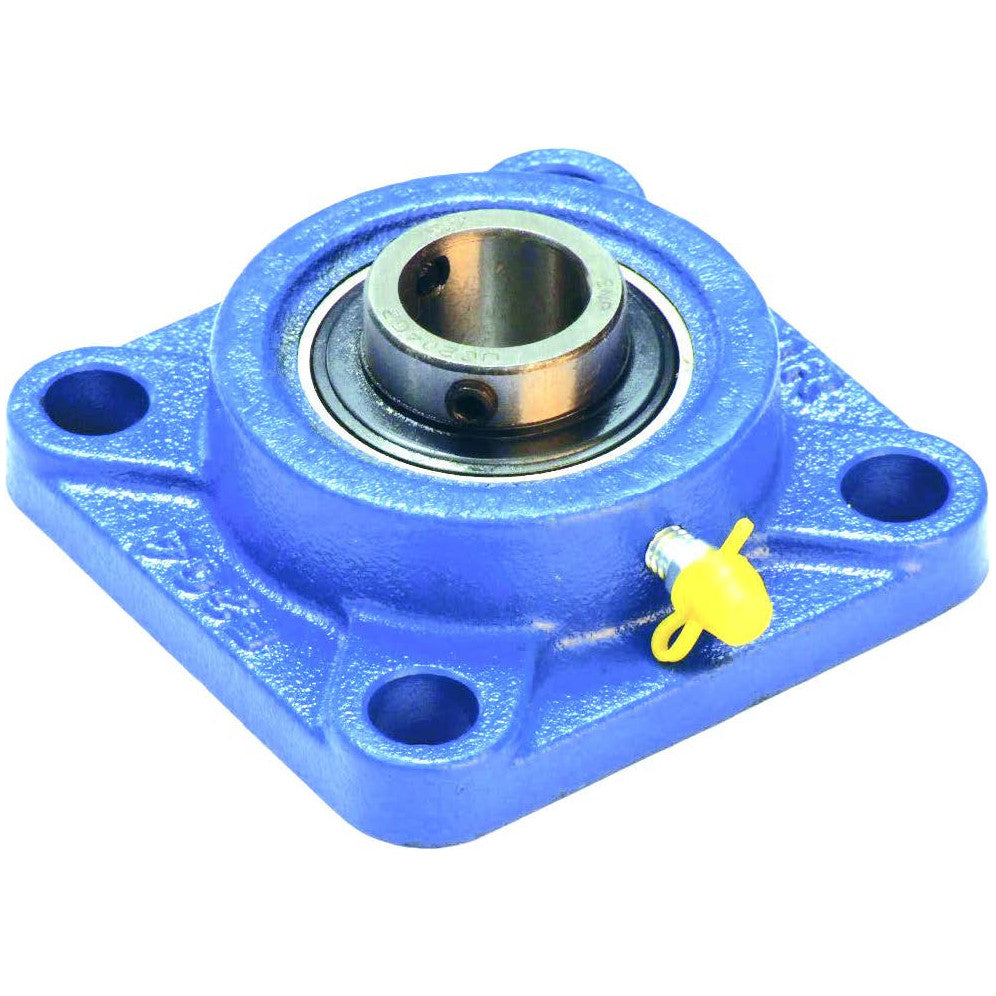

UCF Series Square 4 Bolt Flange Bearing Complete - UCF209

AMA IrelandSKU: 07464

If you are an existing customer please login

Login

Description

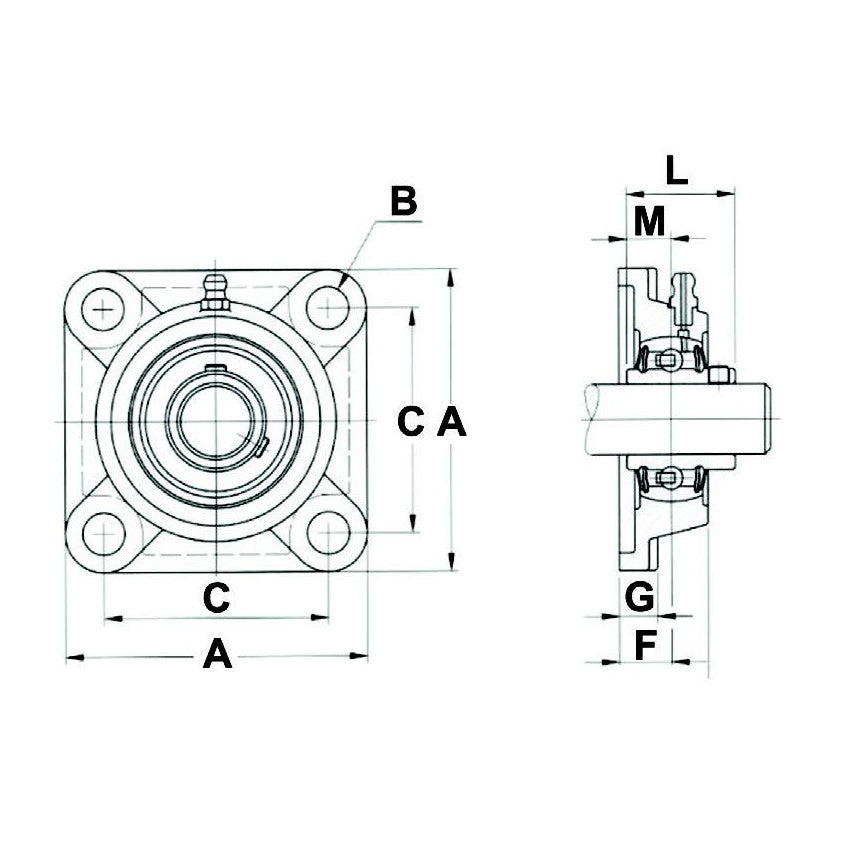

Bearing Code: UCF209

Shaft (mm): 45

A (mm): 137

B (mm): 16

C (mm): 105

F (mm): 22

G (mm): 16

L (mm): 49.2

M (mm): 19

Replacement Insert: Art.34634 UC209

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
