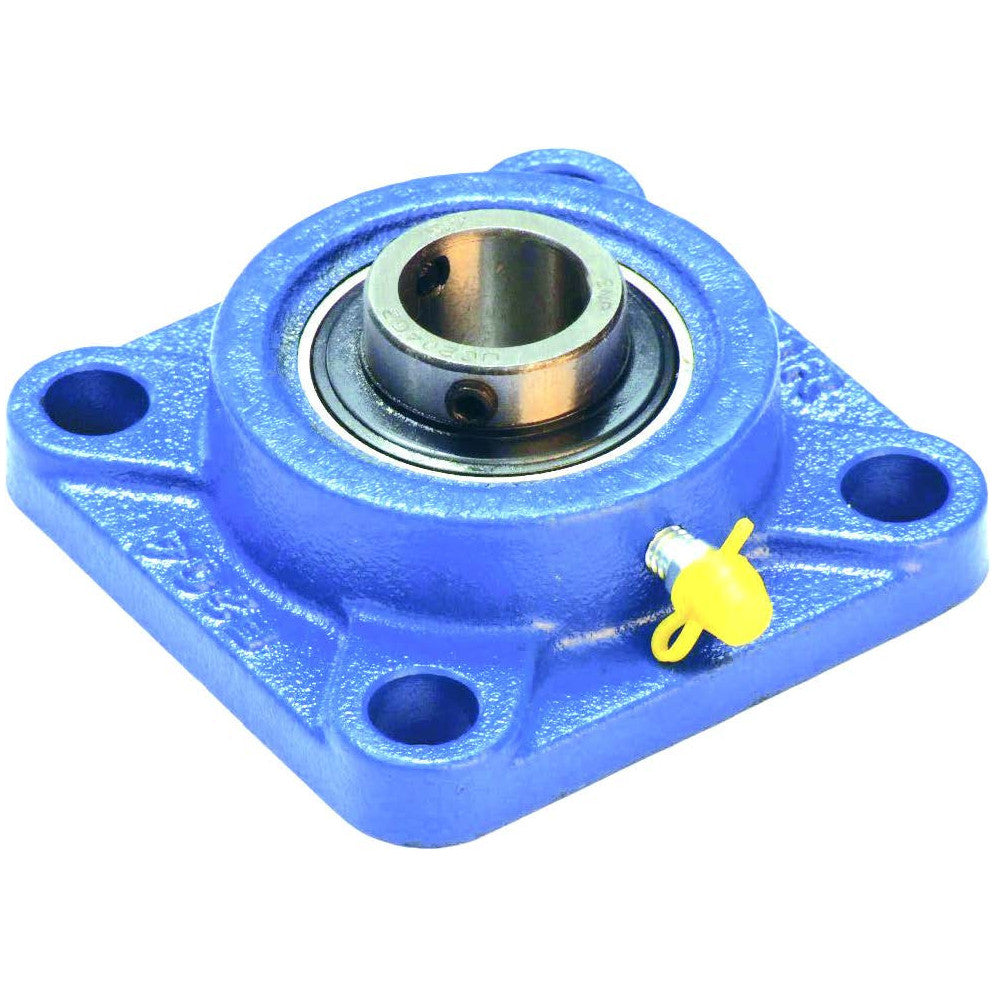

UCF Series Square 4 Bolt Flange Bearing Complete - UCF207

AMA IrelandSKU: 07462

If you are an existing customer please login

Login

Description

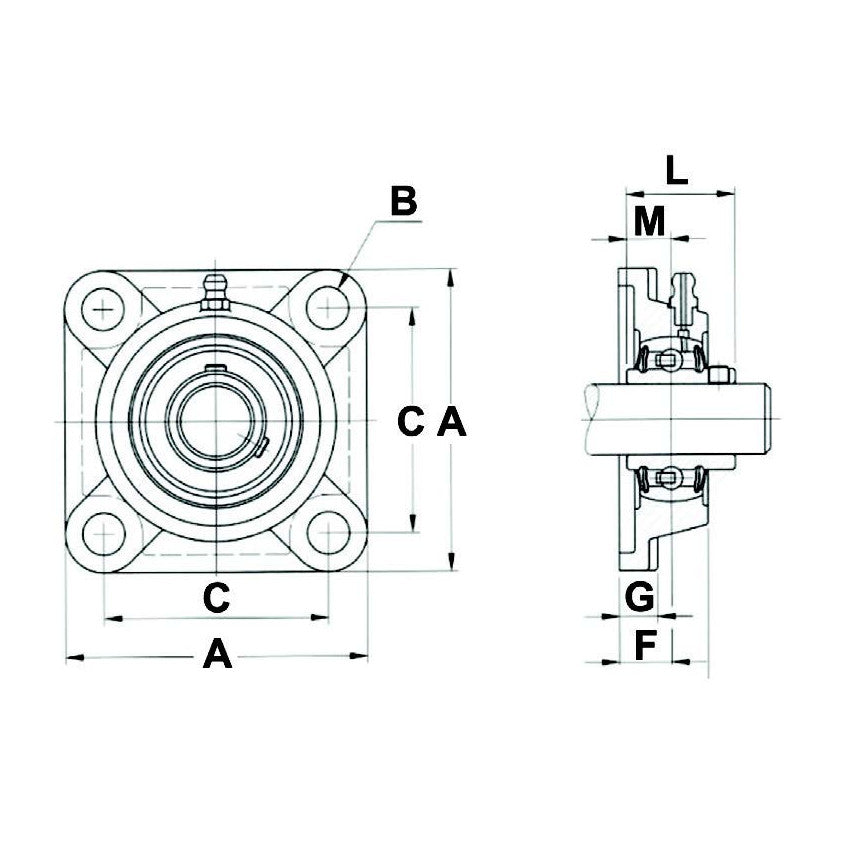

Bearing Code: UCF207

Shaft (mm): 35

A (mm): 117

B (mm): 14

C (mm): 92

F (mm): 19

G (mm): 15

L (mm): 42.9

M (mm): 17.5

Replacement Insert: Art.34632 UC207

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
