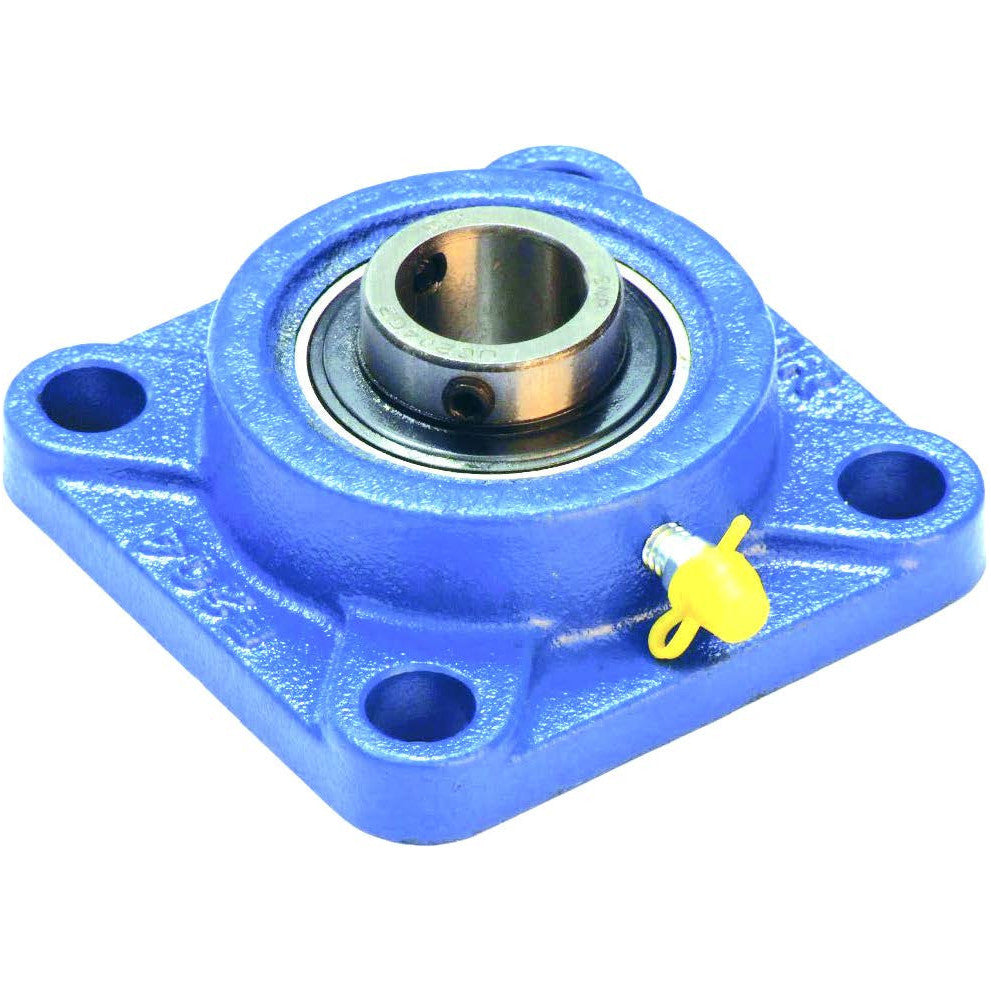

UCF Series Square 4 Bolt Flange Bearing Complete - UCF206

AMA IrelandSKU: 07461

If you are an existing customer please login

Login

Description

Bearing Code: UCF206

Shaft (mm): 30

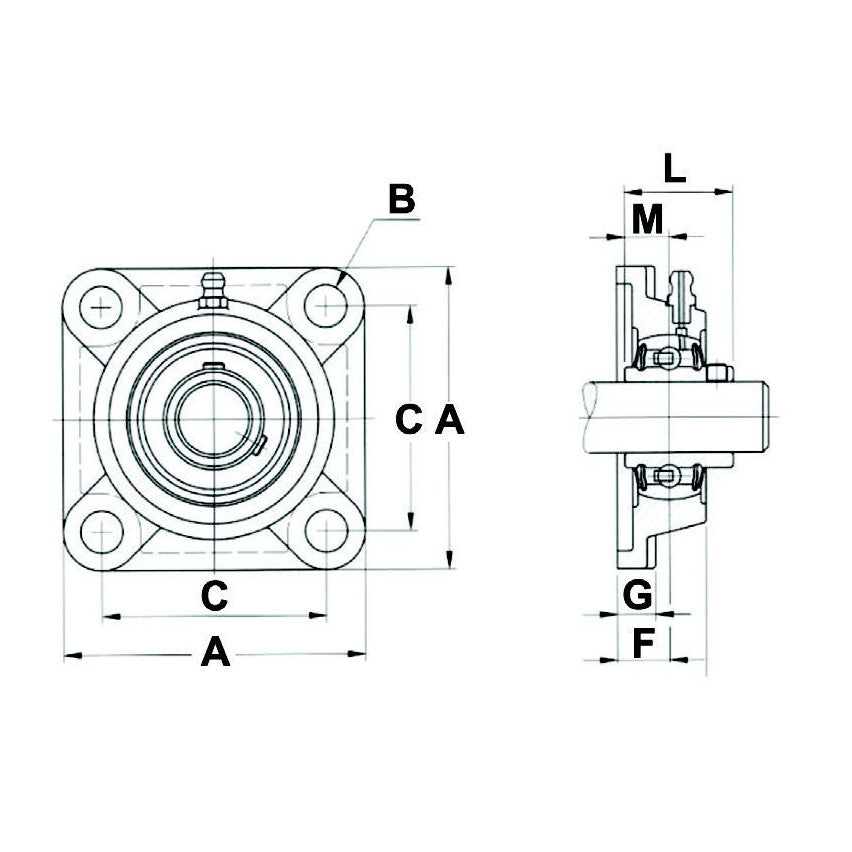

A (mm): 108

B (mm): 12

C (mm): 83

F (mm): 18

G (mm): 13

L (mm): 38.1

M (mm): 15.8

Replacement Insert: Art.34631 UC206

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
