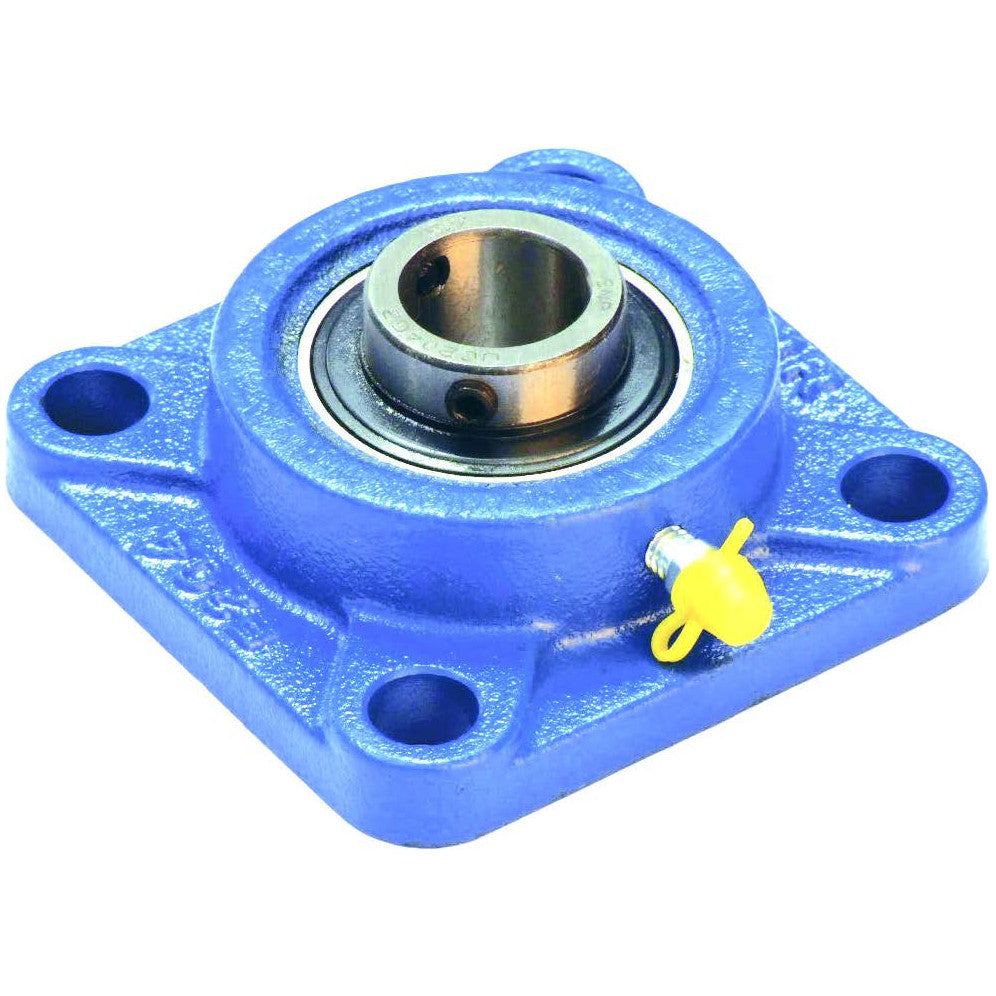

UCF Series Square 4 Bolt Flange Bearing Complete - UCF205

AMA IrelandSKU: 07460

If you are an existing customer please login

Login

Description

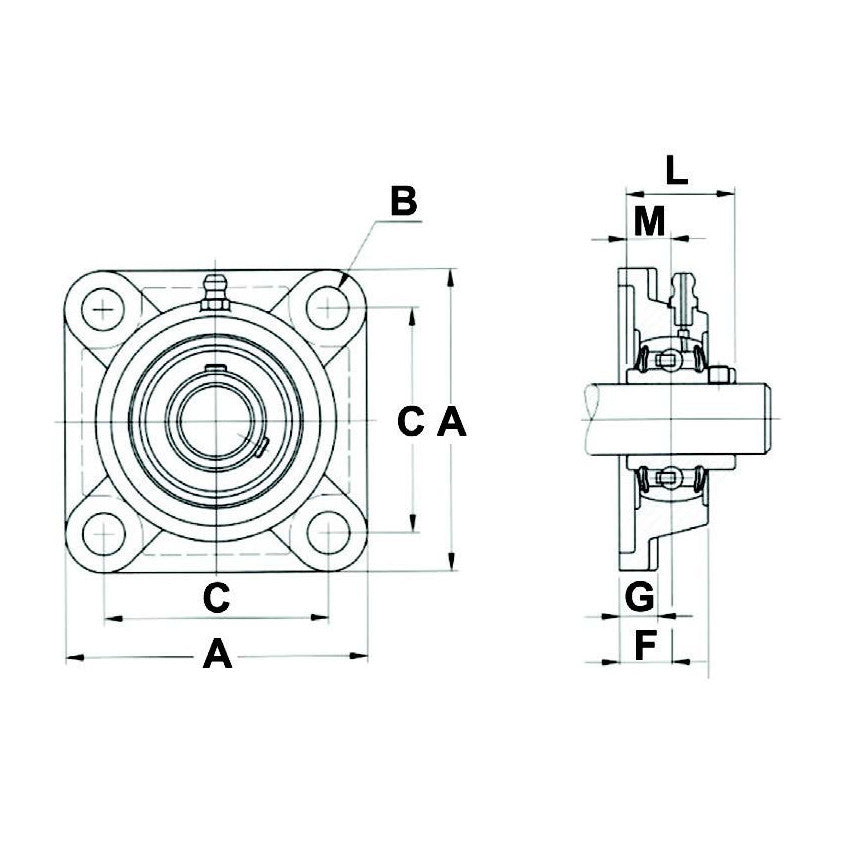

Bearing Code: UCF205

Shaft (mm): 25

A (mm): 95

B (mm): 12

C (mm): 70

F (mm): 16

G (mm): 13

L (mm): 34

M (mm): 14.3

Replacement Insert: Art.34630 UC205

Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
