LED Tractor Worklight / Roof Headlamp - Various Applications


If you are an existing customer please login

Login

Description

Cable length 1 m cable + AMP connector
Light type LED
Rated voltage 10-30 V DC
Degree of protection ip IP69K
Fastening Screw
Model rectangular

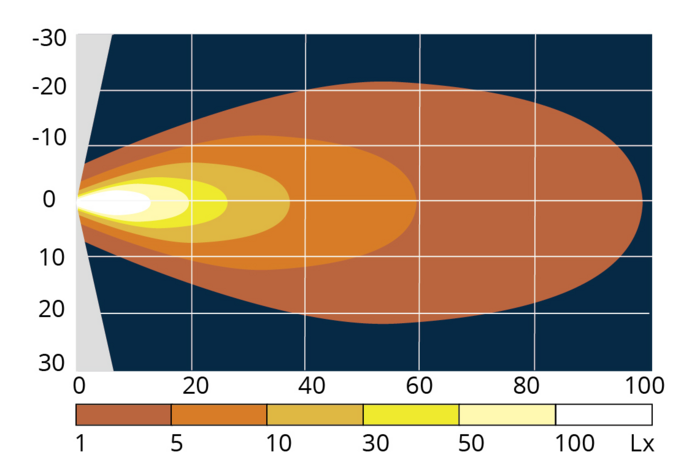

Luminous flux Combo beam (wide and long-range)
3375/2750
Rated power 25 W
Current consumption 2,18A: 12V; 1,05A: 24V
Certifications CE, RoHS, REACH, CISPR25 Class 3, UKCA, IP69K
Light body Aluminum

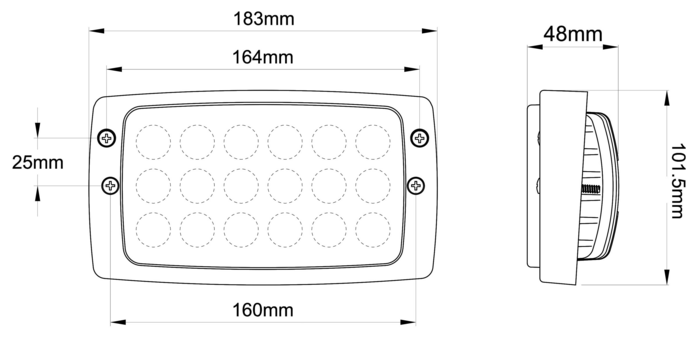

Dimensions 183x48x 101,5 mm
Hole spacing 164 mm / 160 mm
Lens material PC
Number of LEDs 18 Osram LED's
Approvals ECE-R10
Colour temperature 6000 °K
Operating temperature -40°C / +80°C



Applications

•CNH:

OEM: 3060507067, 2981369, 84814468,

84814940, 98046171

•John Deere:

OEM: AZ41570, AZ41571, AZY75365A

•Massey Ferguson:

Fits MF 4225, 4235, 4245, 4255, 4260, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 6110, 6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190, 6235, 6245, 6255, 6265, 6270, 6280, 6290, 8110, 8120, 8130, 8140, 8150, 8160, 8170, 8180, 8210, 8220, 8240, 8250, 8260, 8270.

OEM: 3713134m91, 3713137m

•Notes:

-Cable: 1m electrical cable + AMP connector

-The correct operation of the lamp requires the use of a relay sized according to the current rating of the activation switch
