LED Tractor Worklight / Roof Headlamp - Various Applications


If you are an existing customer please login

Login

Description

    • Cable length 1 m cable + AMP connector
      Light type LED
      Rated voltage 10-30 V DC
      Degree of protection ip IP67
      Fastening Screw
      Model rectangular
      Luminous flux Combo beam (wide and long-range)
      2800
      Rated power 25 W
      Current consumption 2,1A: 12V; 1,0A: 24V
      Certifications CE, RoHS, CISPR25 Class 1, UKCA
      Light body Aluminum

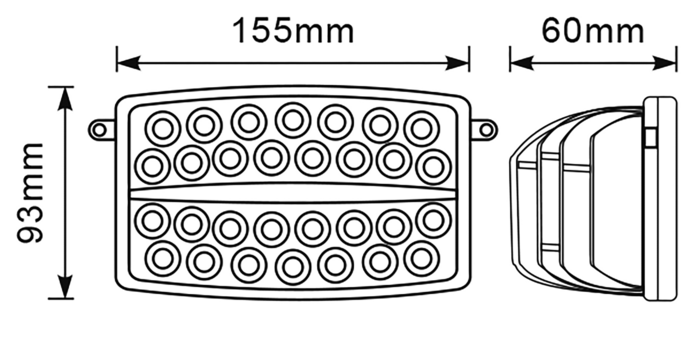

      Dimensions 155x60x93 mm
      Lens material PC
      Number of LEDs 30
      Approvals ECE-R10
      Colour temperature 6000 °K
      Operating temperature -30°C / + 50°C

     USER MANUAL:  https://d38xmr83ywiyu8.cloudfront.net/documenti/media/61235%20User%20manual%20EN.pdf

    • Applications:
  • CNH:

    OEM: 3060507067, 2981369, 84814468,

    84814940, 98046171

    John Deere:

    OEM: AZ41570, AZ41571, AZY75365A

    Massey Ferguson:

    Fits MF 4225, 4235, 4245, 4255, 4260, 4265, 4270, 4325, 4335, 4345, 4355, 4360, 4365, 4370, 6110, 6120, 6130, 6140, 6150, 6160, 6170, 6180, 6190, 6235, 6245, 6255, 6265, 6270, 6280, 6290, 8110, 8120, 8130, 8140, 8150, 8160, 8170, 8180, 8210, 8220, 8240, 8250, 8260, 8270.

    OEM: 3713134m91, 3713137m1

  • Notes:

    -Cable: 1m electrical cable + AMP connector

    -The correct operation of the lamp requires the use of a relay sized according to the current rating of the activation switch
