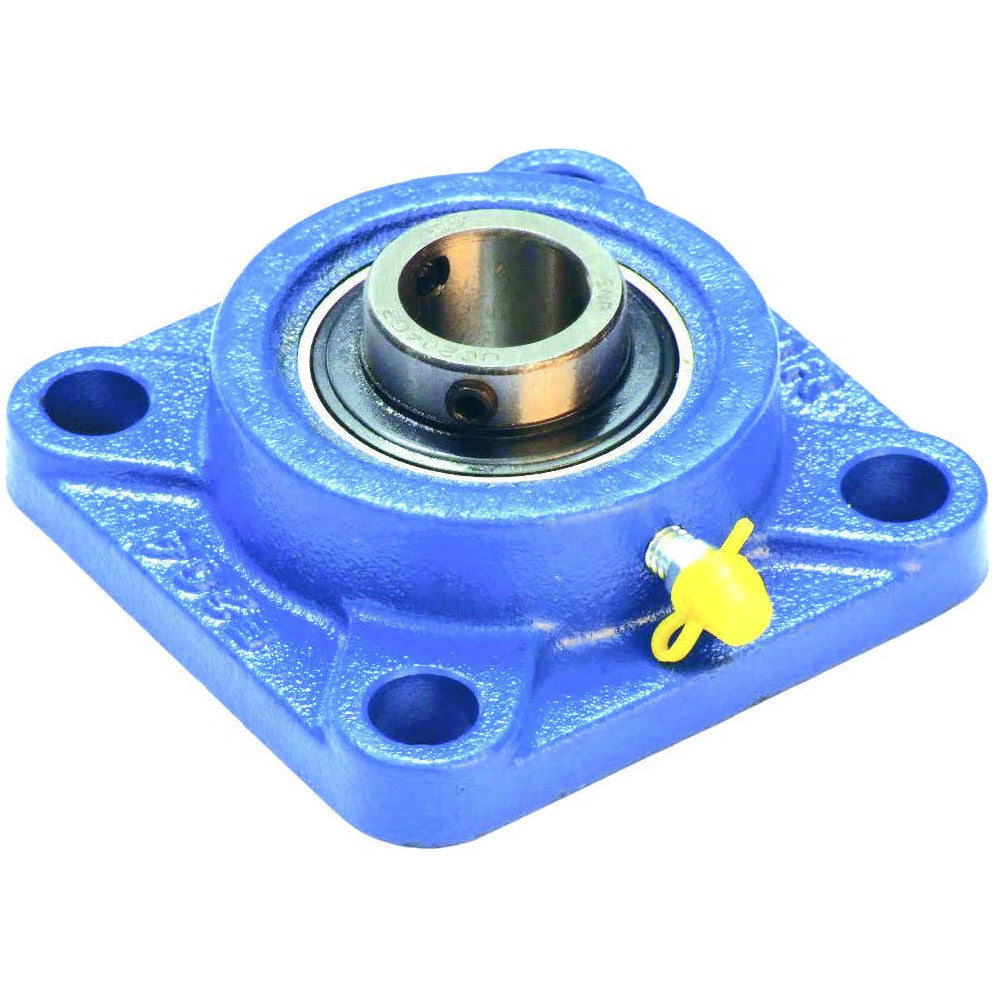

UCF Series Square 4 Bolt Flange Bearing Complete - UCF209

Shaft ø: 45mmSKU: 98514

If you are an existing customer please login

Login

Description

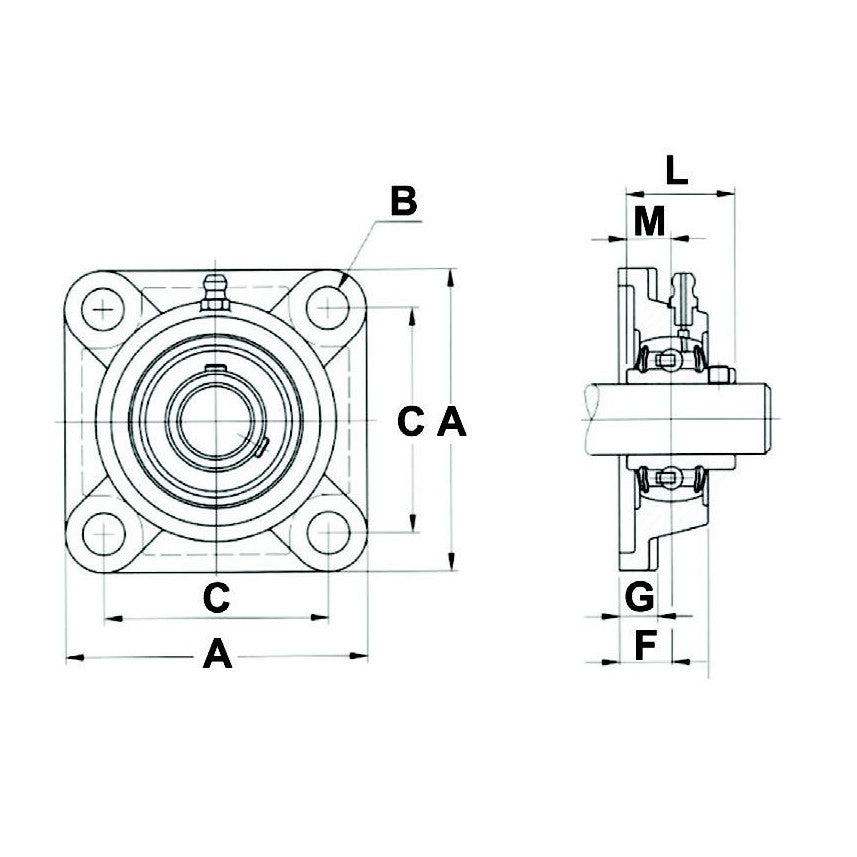

  • Bearing Code: UCF209
  • Shaft (mm): 45
  • A (mm): 137
  • B (mm): 16
  • C (mm): 105
  • F (mm): 22
  • G (mm): 16
  • L (mm): 49.2
  • M (mm): 19
  • Replacement Insert: Art.34634 UC209

*Notes:
• Self-aligning bearings, relubricatable.
• Temperature range: -20°C to +120°C.
• The max. axial load is 0.5 x radial static load.
• The housings are rated to take the maximum bearing loads.
