230V Fuel Transfer Pumps c/w Counter Meter

AMAIrelandSKU: 09317

If you are an existing customer please login

Login

Description

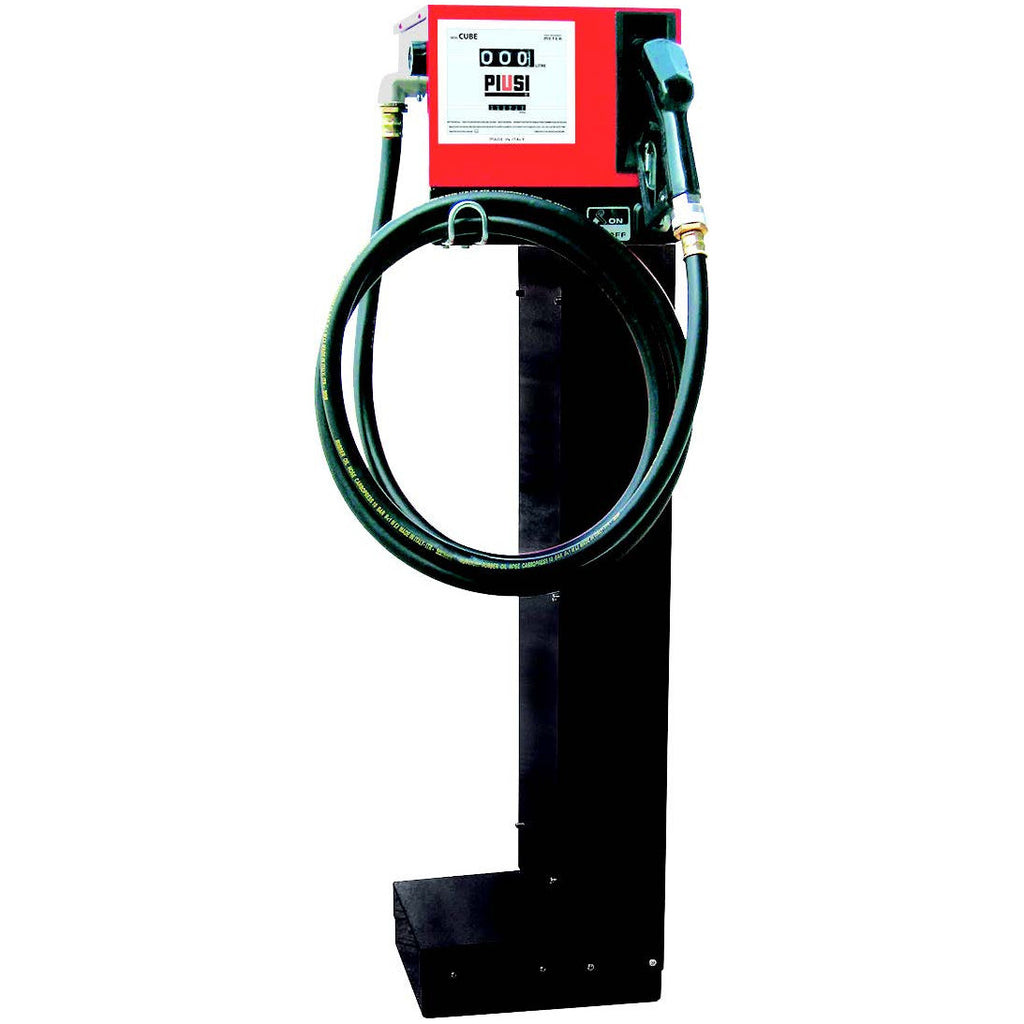

Optional Pedestal

Hertz: 50

RPM: 2800

Hose: 4mt

ø IN: 1"BSP

ø OUT: 1"BSP

Replacements: Art. 00081 - Auto Cut Off Nozzle Art.34445 - Pedestal

• The dispenser unit is suitable for transferring all fuels with a low flash point (Diesel);

• Must not be used for transferring petrol.This transfer unit can be used for private purposes.

• Use for measuring and selling fuel to the public is therefore prohibited.

• Electric self-priming rotary vane pump with built-in by-pass valve.

• The motor has an IP55 protection rating and thermal protection.

• Volumetric litre-meter with oscillating disc, resettable 3-digit display and 6-digital totalisator that cannot be reset.

• Accuracy +/1%.Automatic gun (Item No. Art. 00081) with pump switch built into the gun support.

• Frame: Made of steel with corrosion-proof treatment and stoving enamel.

• Flow Rate: 56L/Min.
