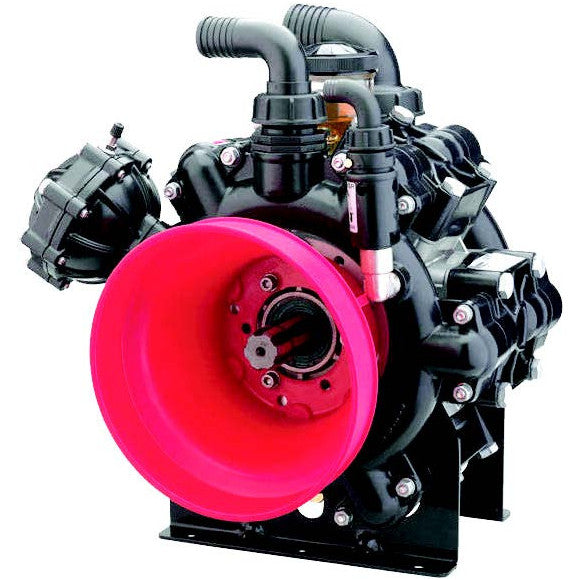

Sprayer Pump - AR 250 bp C/C cod. 1211

AMA IrelandSKU: ADIAR250

If you are an existing customer please login

Login

Description

Max Flow: 254.4 L/Min

Max Pressure: 20 Bar (290 PSI)

Power: 11.4HP

RPM: 550

Suction: Ø: 50mm

Outlet: Ø: 35mm

Product Details:

Semi-hydraulic six-diaphragm pump, for use in low pressure systems.

Parts in contact with pumped liquids in plastic-coated aluminium Rilsan and AISI 303/304. Diaphragms in NBR.

Seals in NBR.

Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking.

Fitted with air-hydraulic damper for smoother operation and less hammer effect in the
delivery circuit.

Remote level monitoring sensor on request.

Remote oil tank installation kit available on request.

Oil drainage stopper.

Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm. Spherical sector profile valves for lower flow resistance and improved volumetric
efficiency.

Rugged feet secured to pump casing.

Mass-produced safety valve and cardan protection.

Geomet metal fasteners.

Available pulley fixtures, flanges for hydraulic motors and hydraulic pumps for overgears.

Kit for combining two pumps to form a modular unit to supply the sprayer’s various uses.
